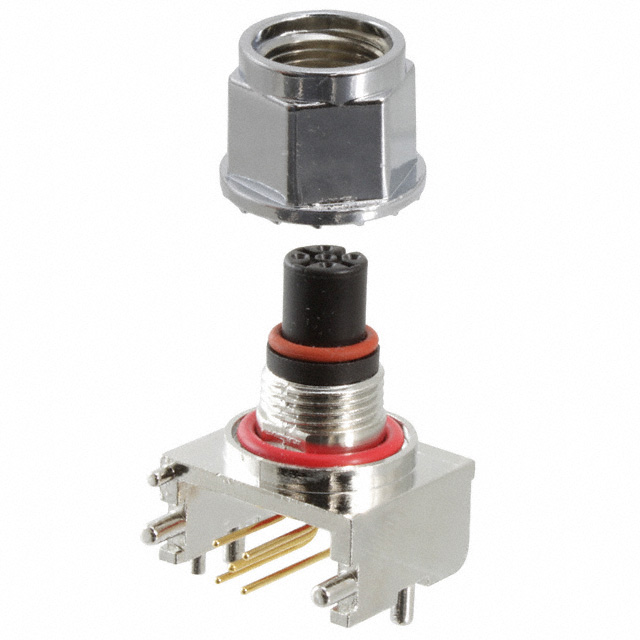

Molex-1302990300 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Female Sockets
Number of Positions:	5
Shell Size - Insert:	M12-5
Shell Size, MIL:	-
Mounting Type:	Panel Mount, Through Hole, Right Angle
Mounting Feature:	Bulkhead - Front Side Nut
Termination:	Solder
Fastening Type:	Threaded
Orientation:	A
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	Chrome/Duplex Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Board Guide, Ground
Shielding:	-
Current Rating (Amps):	4A
Voltage Rating:	250VAC/DC
Cable Opening:	-
Operating Temperature:	-40°C ~ 85°C

Molex 1302990300
