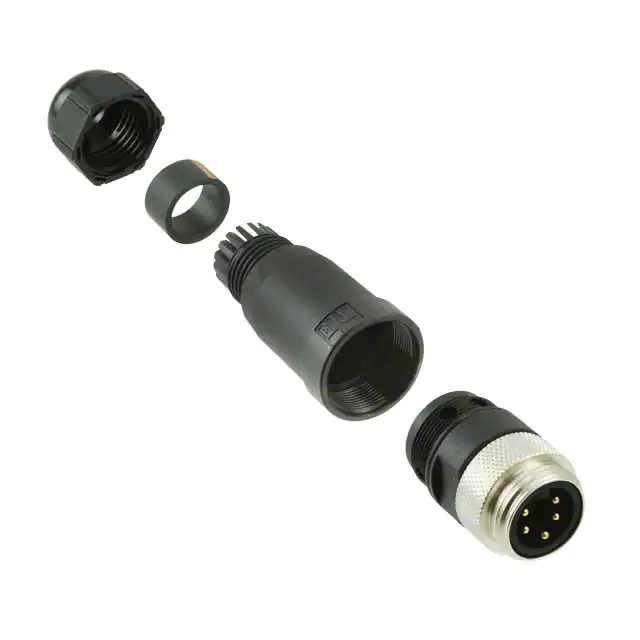

Molex-1300170029 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Male Pins
Number of Positions:	5
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Plastic
Shell Material:	Polyamide (PA), Nylon
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	Black, Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell
Shielding:	-
Current Rating (Amps):	8A
Voltage Rating:	600VAC/DC
Cable Opening:	0.200" ~ 0.450" (5.08mm ~ 11.43mm)
Operating Temperature:	-20°C ~ 80°C

Molex 1300170029
