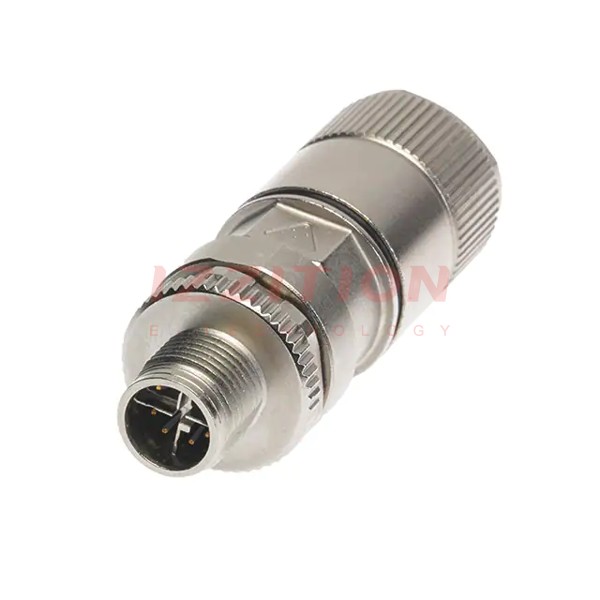

Molex-1203410806 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Male Pins
Number of Positions:	8
Shell Size - Insert:	M12-8
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	IDC
Fastening Type:	Threaded
Orientation:	X
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	Backshell
Shielding:	Shielded
Current Rating (Amps):	0.5A
Voltage Rating:	50VAC, 60VDC
Cable Opening:	0.217" ~ 0.354" (5.50mm ~ 9.00mm)
Operating Temperature:	-40°C ~ 85°C

Molex 1203410806
