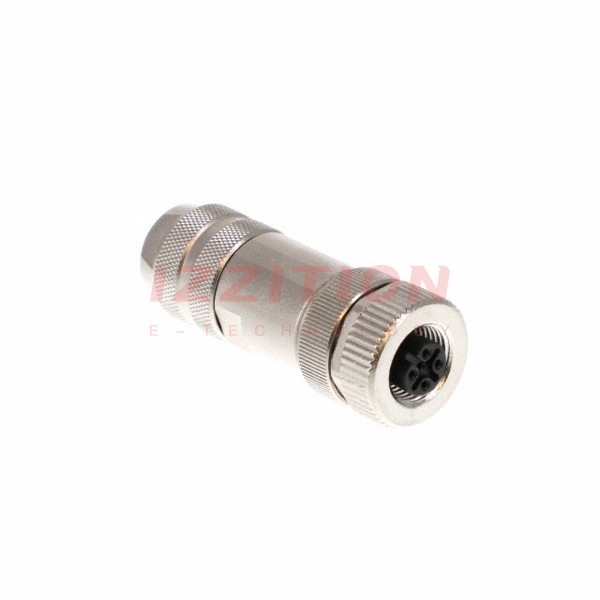

Molex-1201000001 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Female Sockets
Number of Positions:	5
Shell Size - Insert:	M12-5
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	-
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Coupling Nut
Shielding:	Shielded
Current Rating (Amps):	4A
Voltage Rating:	60V
Cable Opening:	-
Operating Temperature:	-40°C ~ 85°C

Molex 1201000001
