Molex-1200910028 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Female Sockets
Number of Positions:	3
Shell Size - Insert:	M8-3
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	IDC
Fastening Type:	Threaded
Orientation:	-
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Black, Silver
Ingress Protection:	IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Coupling Nut
Shielding:	Unshielded
Current Rating (Amps):	3A
Voltage Rating:	60V
Cable Opening:	0.098" ~ 0.205" (2.50mm ~ 5.20mm)
Operating Temperature:	-25°C ~ 80°C

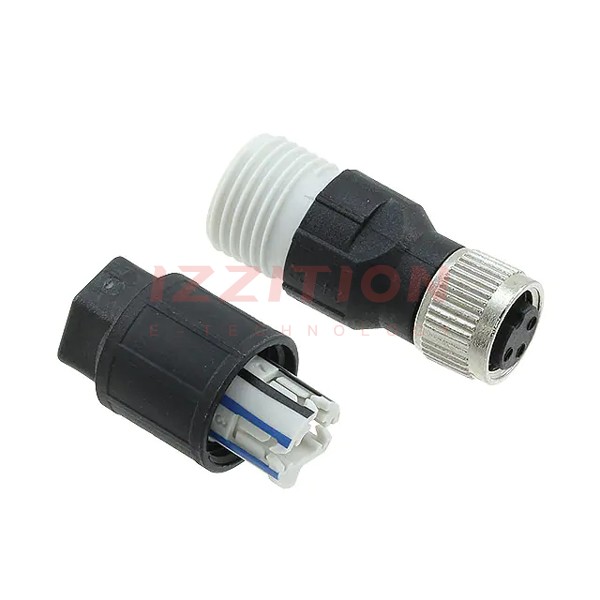

Molex 1200910028
