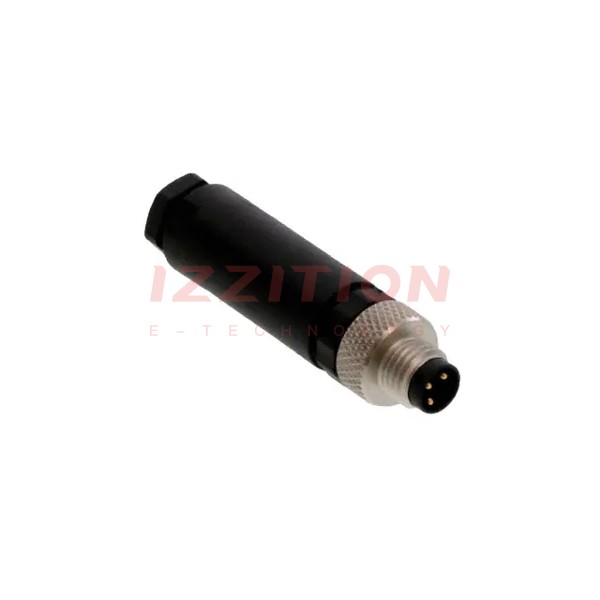

Molex-1200910023 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Male Pins
Number of Positions:	3
Shell Size - Insert:	M8-3
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Black, Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell
Shielding:	Unshielded
Current Rating (Amps):	4A
Voltage Rating:	60V
Cable Opening:	0.138" ~ 0.197" (3.50mm ~ 5.00mm)
Operating Temperature:	-40°C ~ 85°C

Molex 1200910023
