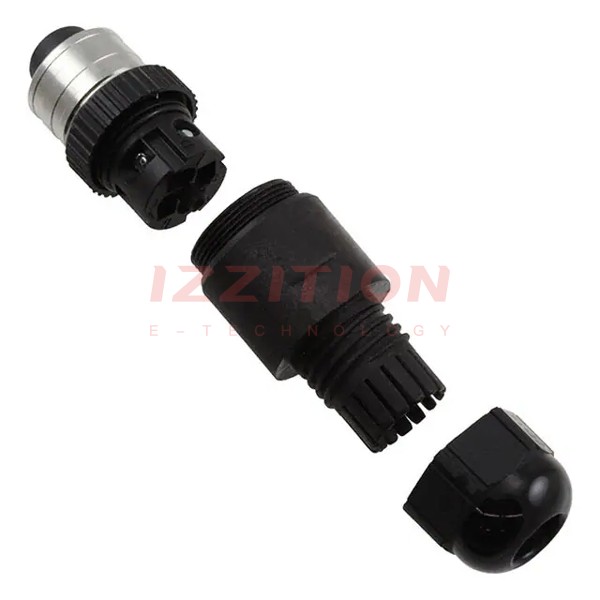

Molex-1200850013 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Female Sockets
Number of Positions:	4
Shell Size - Insert:	M12-4
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Push-Pull
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Brass
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Black, Silver
Ingress Protection:	IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	-
Features:	Backshell
Shielding:	-
Current Rating (Amps):	4A
Voltage Rating:	250VAC/DC
Cable Opening:	0.161" ~ 0.319" (4.10mm ~ 8.10mm)
Operating Temperature:	-25°C ~ 90°C

Molex 1200850013
