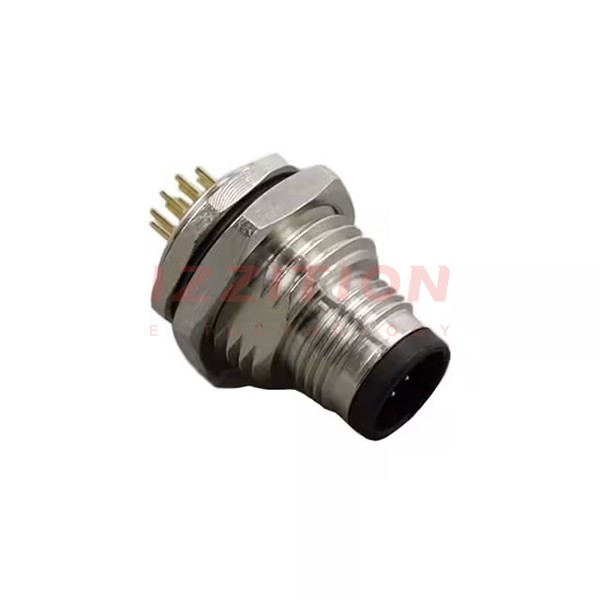

Molex-1200845091 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Male Pins
Number of Positions:	12
Shell Size - Insert:	M12-12
Shell Size, MIL:	-
Mounting Type:	Panel Mount, Through Hole
Mounting Feature:	Bulkhead - Front Side Nut
Termination:	Solder
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Brass
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	UL94 V-0
Features:	-
Shielding:	Unshielded
Current Rating (Amps):	1.5A
Voltage Rating:	30VAC/DC
Cable Opening:	-
Operating Temperature:	-25°C ~ 90°C

Molex 1200845091
