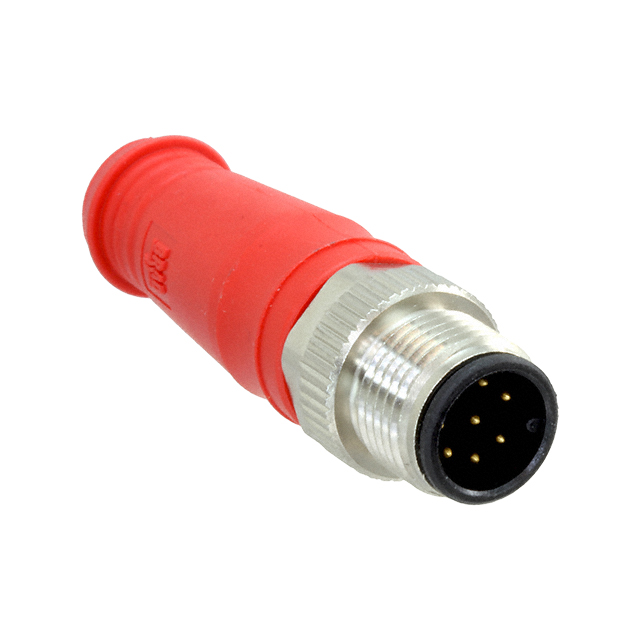

Molex-1200768035 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Male Pins
Number of Positions:	8
Shell Size - Insert:	M12-8
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	-
Fastening Type:	Threaded
Orientation:	A
Primary Material:	Metal
Shell Material:	Brass
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Red, Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Ground, Shorting
Shielding:	-
Current Rating (Amps):	2A
Voltage Rating:	30VAC/DC
Cable Opening:	-
Operating Temperature:	-25°C ~ 90°C

Molex 1200768035
