Molex-1200710086 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Male Pins
Number of Positions:	4
Shell Size - Insert:	M12-4
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	IDC
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Black, Silver
Ingress Protection:	IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:	-
Features:	Backshell
Shielding:	Unshielded
Current Rating (Amps):	4A
Voltage Rating:	125V
Cable Opening:	0.138" ~ 0.236" (3.50mm ~ 6.00mm)
Operating Temperature:	-25°C ~ 80°C

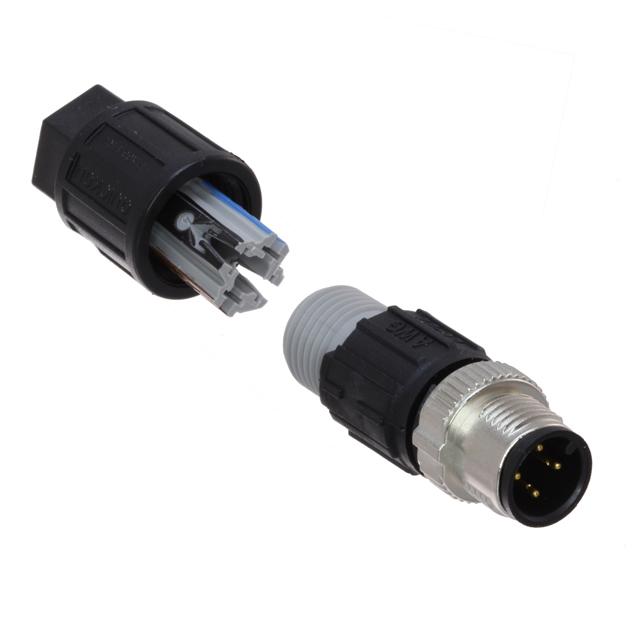

Molex 1200710086
