Molex-1200710070 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Female Sockets
Number of Positions:	5
Shell Size - Insert:	M12-5
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line), Right Angle
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Brass
Shell Finish:	Zinc
Contact Finish - Mating:	Nickel
Color:	Black, Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Coupling Nut
Shielding:	Unshielded
Current Rating (Amps):	4A
Voltage Rating:	250VAC, 300VDC
Cable Opening:	0.161" ~ 0.319" (4.10mm ~ 8.10mm)
Operating Temperature:	-25°C ~ 90°C

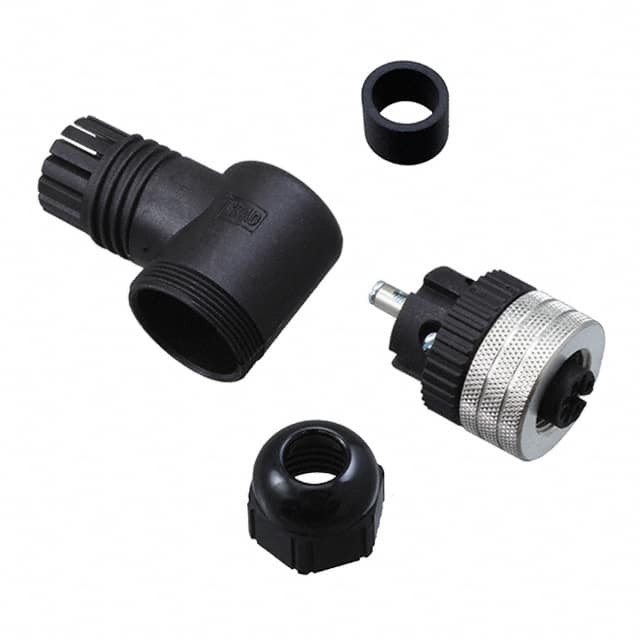

Molex 1200710070
