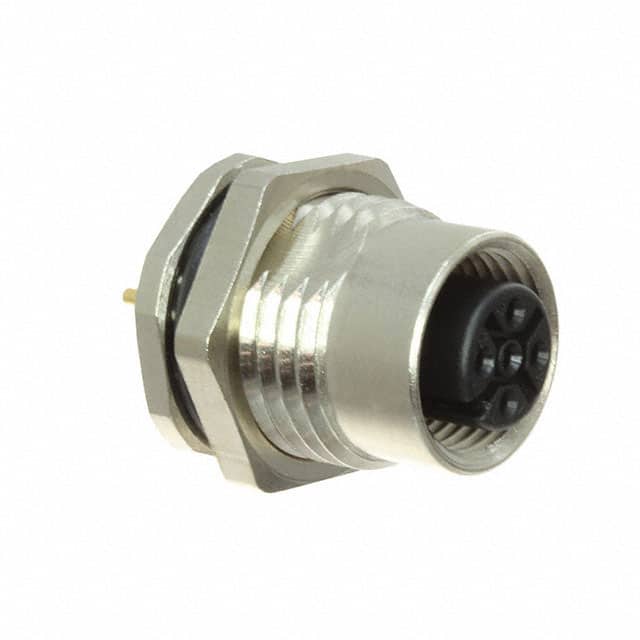

Molex-1200110238 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Female Sockets
Number of Positions:	5
Shell Size - Insert:	M12-5
Shell Size, MIL:	-
Mounting Type:	Panel Mount, Through Hole
Mounting Feature:	Bulkhead - Front Side Nut
Termination:	Solder
Fastening Type:	Threaded
Orientation:	Keyed
Primary Material:	Metal
Shell Material:	Brass
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP68 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	-
Shielding:	Unshielded
Current Rating (Amps):	4A
Voltage Rating:	250V
Cable Opening:	-
Operating Temperature:	-20°C ~ 80°C

Molex 1200110238
