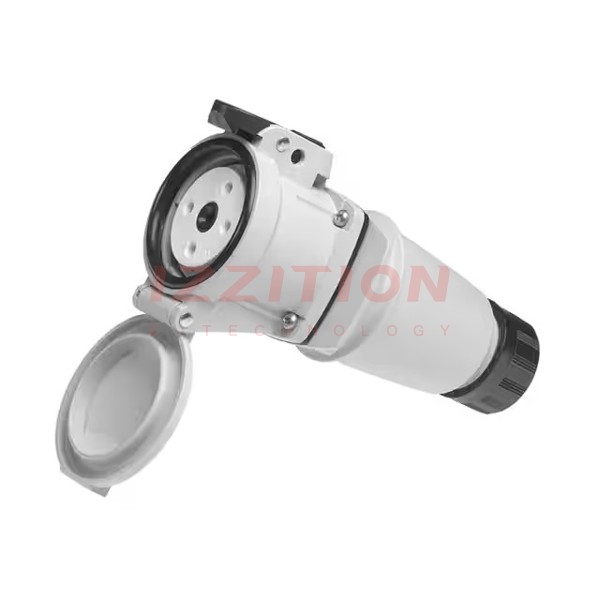

Molex-1122170015 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Receptacle, Female Sockets
Number of Positions:	3 (2 + PE)
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Push-Twist
Orientation:	7
Primary Material:	Plastic
Shell Material:	Polybutylene Terephthalate (PBT), Glass Filled
Shell Finish:	-
Contact Finish - Mating:	Silver
Color:	Gray
Ingress Protection:	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Material Flammability Rating:	-
Features:	Backshell, Cap (Cover)
Shielding:	Unshielded
Current Rating (Amps):	60A
Voltage Rating:	125VAC
Cable Opening:	-
Operating Temperature:	-25°C ~ 60°C

Molex 1122170015
