1054311402
  • Share:

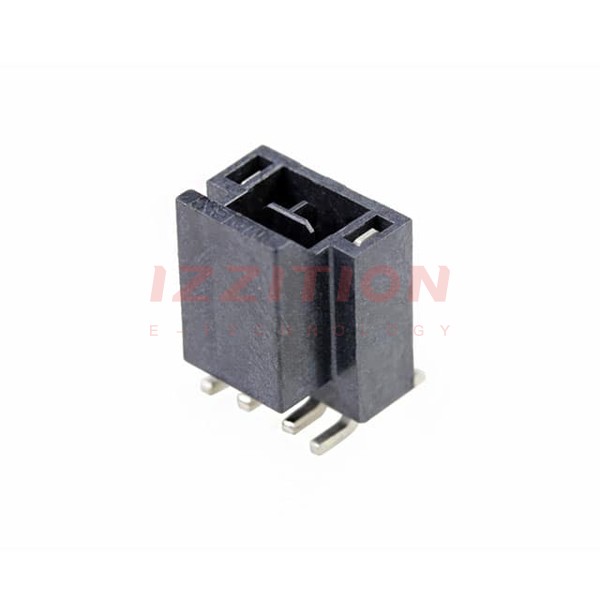

Molex 1054311402

Manufacturer No:
1054311402
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
1054311402 Datasheet
ECAD Model:
-
Description:
NANO-FIT HDR SMT VT SGL 2CKT 30A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.382" (9.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Pick and Place, Solder Retention
Operating Temperature:-40°C ~ 115°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):4A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$2.55
132

Please send RFQ , we will respond immediately.
