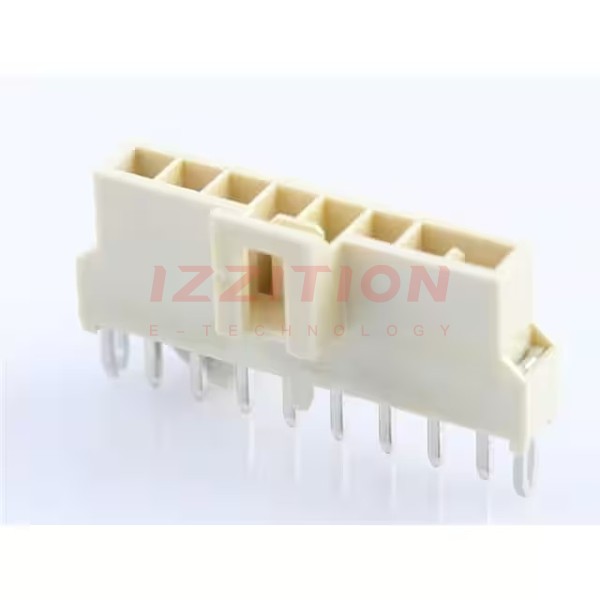

| Part Number | 105311-2208 | 105311-2108 |
|---|---|---|
| Manufacturer | Molex | Molex |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions | 8 | 8 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.126" (3.20mm) | 0.126" (3.20mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.356" (9.05mm) | 0.356" (9.05mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Gold | Tin |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 59.0µin (1.50µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | - | - |
| Voltage Rating | 250V | 250V |
