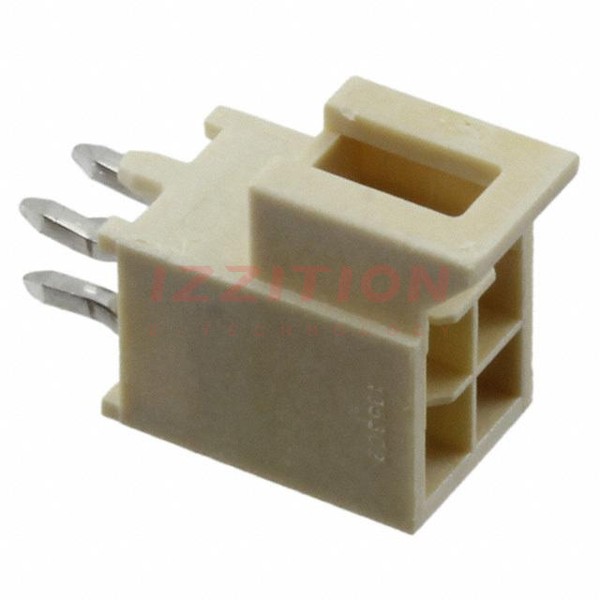

Molex-1053102304 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.098" (2.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.356" (9.05mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	250V

Molex 1053102304
