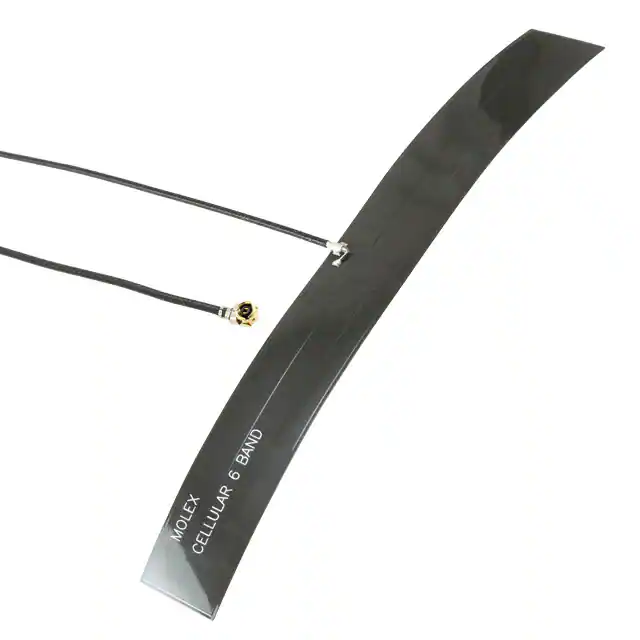

Molex 1052630003

Manufacturer No:
1052630003
Manufacturer:
Molex
Package:
Tray
Datasheet:
1052630003 Datasheet
ECAD Model:
-
Description:
RF ANT 850MHZ/900MHZ FLAT 200MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

RF Family/Standard:Cellular
Frequency Group:Wide Band
Frequency (Center/Band):850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz
Frequency Range:824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz
Antenna Type:Flat Patch
Number of Bands:6
VSWR:-
Return Loss:-7.5dB, -8dB, -8.5dB, -8.8dB, -9dB, -12dB
Gain:1.3dBi, 1.7dBi, 2dBi, 2.2dBi, 3dBi
Power - Max:2 W
Features:Cable - 200mm
Termination:U.FL (UMCC), IPEX MHF1
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.004" (0.10mm)
Applications:GSM, LTE, UMTS
0 Remaining View Similar

In Stock

$6.04
53

Please send RFQ , we will respond immediately.
