Please send RFQ , we will respond immediately.

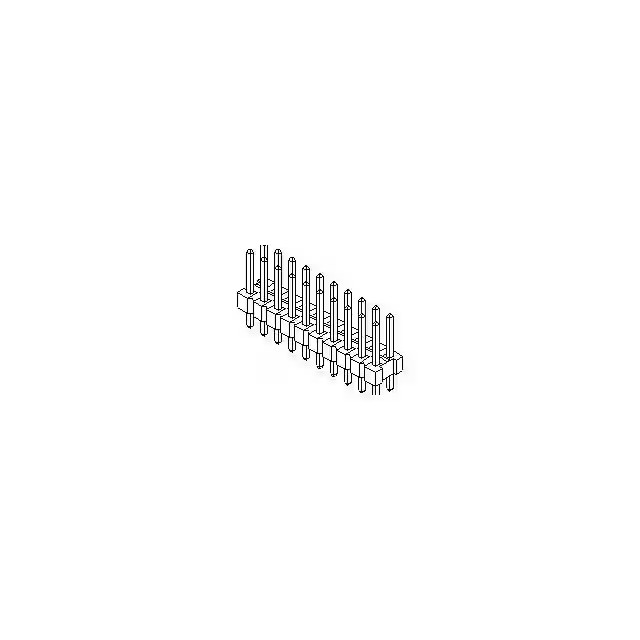

| Part Number | 10-89-7281 | 10-89-1281 | 10-89-7221 |
|---|---|---|---|
| Manufacturer | Molex | Molex | Molex |
| Product Status | Active | Obsolete | Active |
| Connector Type | - | Header, Breakaway | - |
| Contact Type | - | Male Pin | - |
| Pitch - Mating | - | 0.100" (2.54mm) | - |
| Number of Positions | - | 28 | - |
| Number of Rows | - | 2 | - |
| Row Spacing - Mating | - | 0.100" (2.54mm) | - |
| Number of Positions Loaded | - | All | - |
| Style | - | Board to Board or Cable | - |
| Shrouding | - | Unshrouded | - |
| Mounting Type | - | Through Hole | - |
| Termination | - | Solder | - |
| Fastening Type | - | Push-Pull | - |
| Contact Length - Mating | - | 0.240" (6.10mm) | - |
| Contact Length - Post | - | 0.107" (2.71mm) | - |
| Overall Contact Length | - | 0.437" (11.10mm) | - |
| Insulation Height | - | 0.090" (2.29mm) | - |
| Contact Shape | - | Square | - |
| Contact Finish - Mating | - | Gold | - |
| Contact Finish Thickness - Mating | - | 15.0µin (0.38µm) | - |
| Contact Finish - Post | - | Tin | - |
| Contact Material | - | Phosphor Bronze | - |
| Insulation Material | - | Polyester, Glass Filled | - |
| Features | - | - | - |
| Operating Temperature | - | - | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | - |
| Insulation Color | - | Black | - |
| Current Rating (Amps) | - | - | - |
| Voltage Rating | - | - | - |
