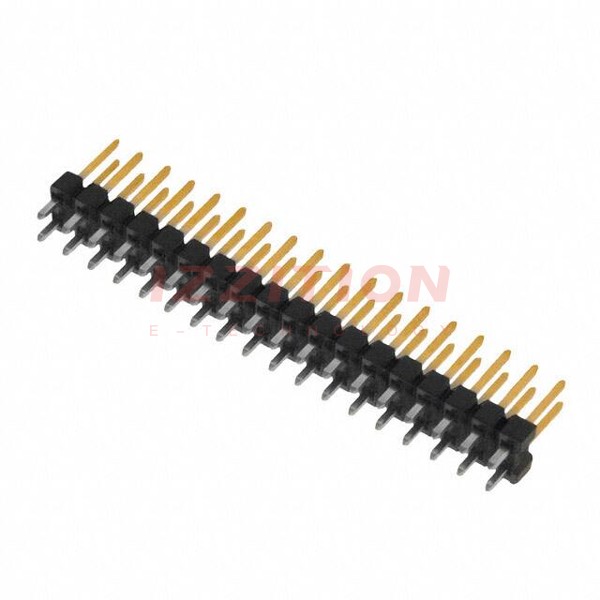

Molex 10-89-1361

Manufacturer No:
10-89-1361
Manufacturer:
Molex
Package:
Bulk
Datasheet:
10-89-1361 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 36POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:36
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.107" (2.71mm)
Overall Contact Length:0.437" (11.10mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
248

Please send RFQ , we will respond immediately.

Similar Products

Part Number 10-89-1361 10-89-1381   10-89-1461   10-89-1561   10-89-1661   10-89-1761   10-89-1061   10-89-1161   10-89-1261   10-89-1301   10-89-1321   10-89-1341
Manufacturer Molex Molex Molex Molex Molex Molex Molex Molex Molex Molex Molex Molex
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Active Obsolete Obsolete
Connector Type Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 36 38 46 56 66 76 6 16 26 30 32 34
Number of Rows 2 2 2 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All All All All All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm)
Contact Length - Post 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm) 0.107" (2.71mm)
Overall Contact Length 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm) 0.437" (11.10mm)
Insulation Height 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm)
Contact Shape Square Square Square Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Insulation Material Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled Polyester, Glass Filled
Features - - - - - - - - - - - -
Operating Temperature - - - - - - - - - - - -
Ingress Protection - - - - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black Black Black Black
Current Rating (Amps) - - - - - - - - - - - -
Voltage Rating - - - - - - - - - - - -
