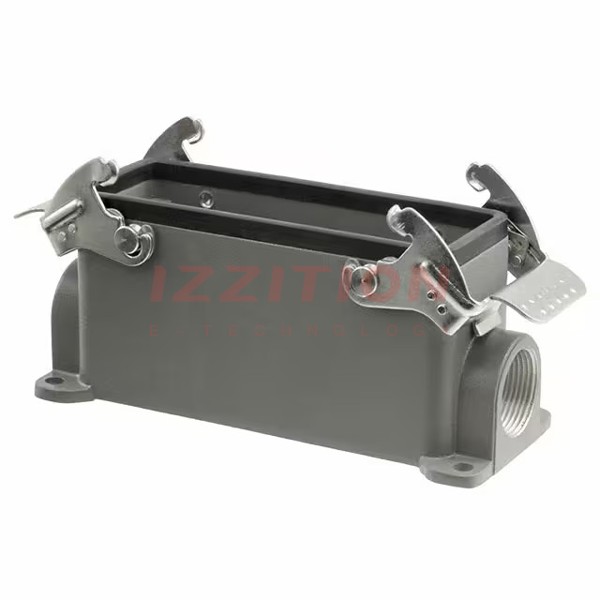

Molex-0936013522 - Heavy Duty Connectors - Housings, Hoods, Bases Product Specifications and Latest Quotes

Connector Type:	Base - Box Mount
Style:	Side Entry
Size:	24B
Lock Location:	Locking Clip (2) on Base Bottom
Thread Size:	M25
Size / Dimension:	5.650" L x 2.244" W x 2.480" H (143.50mm x 57.00mm x 63.00mm)
Housing Color:	-
Features:	-
Ingress Protection:	IP66 - Dust Tight, Water Resistant
Housing Material:	Aluminum Alloy, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-40°C ~ 125°C

Molex 0936013522
