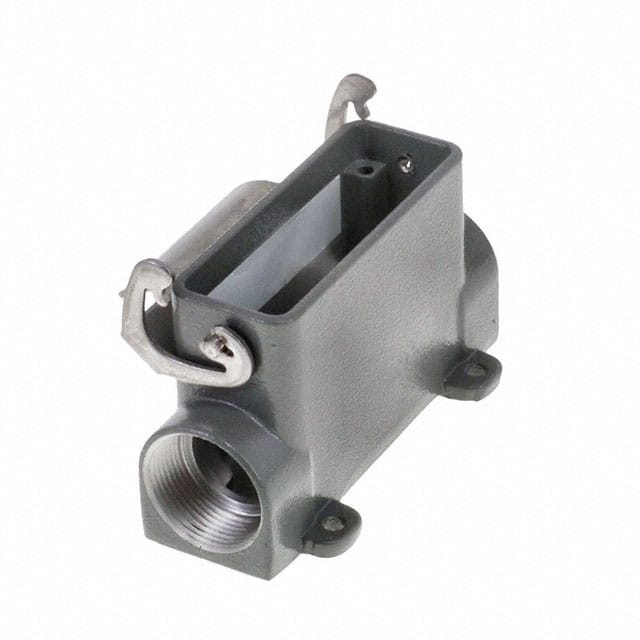

Molex-0936012138 - Heavy Duty Connectors - Housings, Hoods, Bases Product Specifications and Latest Quotes

Connector Type:	Base - Box Mount
Style:	Side Entry
Size:	16A
Lock Location:	Locking Clip (1) on Base Bottom
Thread Size:	PG21
Size / Dimension:	4.016" L x 1.969" W x 2.244" H (102.00mm x 50.00mm x 57.00mm)
Housing Color:	-
Features:	Feed Through
Ingress Protection:	IP66 - Dust Tight, Water Resistant
Housing Material:	Aluminum Alloy, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-40°C ~ 125°C

Molex 0936012138
