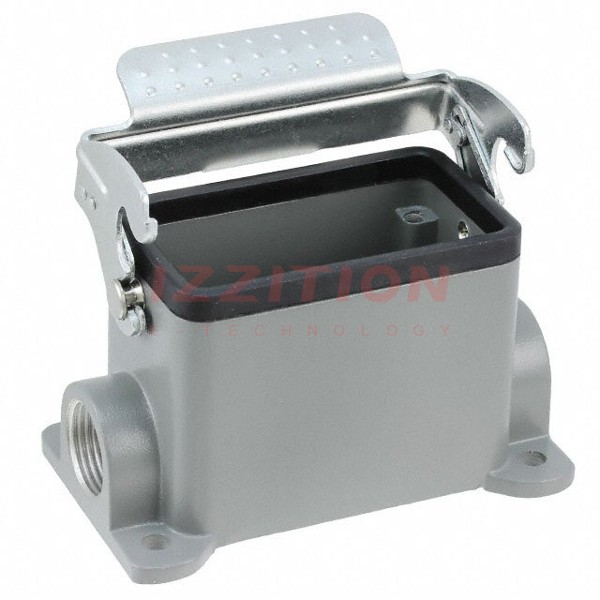

Molex-0936011547 - Heavy Duty Connectors - Housings, Hoods, Bases Product Specifications and Latest Quotes

Connector Type:	Base - Box Mount
Style:	Side Entry
Size:	10B
Lock Location:	Locking Clip (1) on Base Bottom
Thread Size:	M20
Size / Dimension:	3.819" L x 2.244" W x 2.244" H (97.00mm x 57.00mm x 57.00mm)
Housing Color:	-
Features:	-
Ingress Protection:	IP66 - Dust Tight, Water Resistant
Housing Material:	Aluminum Alloy, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-40°C ~ 125°C

Molex 0936011547
