Molex-0936010991 - Heavy Duty Connectors - Housings, Hoods, Bases Product Specifications and Latest Quotes

Connector Type:	Base - Box Mount
Style:	Side Entry
Size:	6B
Lock Location:	Locking Clip (1) on Base Bottom
Thread Size:	M20
Size / Dimension:	3.287" L x 2.244" W x 2.087" H (83.50mm x 57.00mm x 53.00mm)
Housing Color:	Gray
Features:	Cover, Feed Through
Ingress Protection:	IP66/IP69 - Dust Tight, Water Resistant, Waterproof
Housing Material:	Aluminum, Die Cast
Housing Finish:	Powder Coated
Operating Temperature:	-

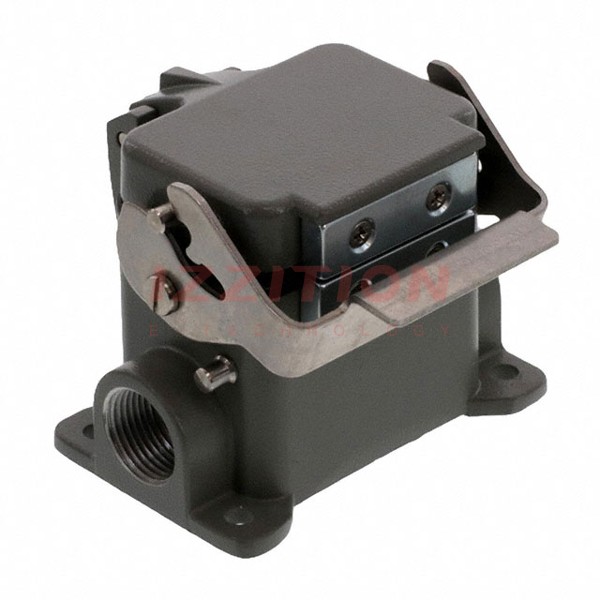

Molex 0936010991
