Molex-0908160010 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 2 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	0.083" (2.10mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.333" (8.45mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	118.1µin (3.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyphthalamide (PPA), Glass Filled
Features:	Board Guide
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 HB
Insulation Color:	Black
Current Rating (Amps):	1.2A
Voltage Rating:	250V

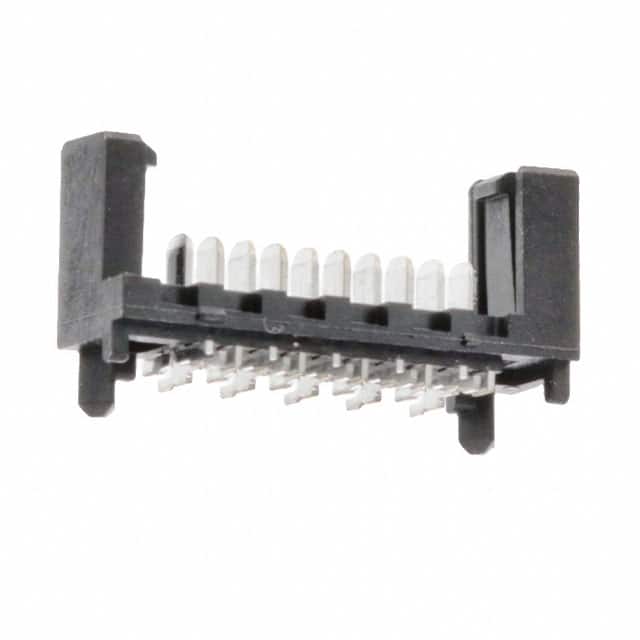

Molex 0908160010
