0908140610
  • Share:

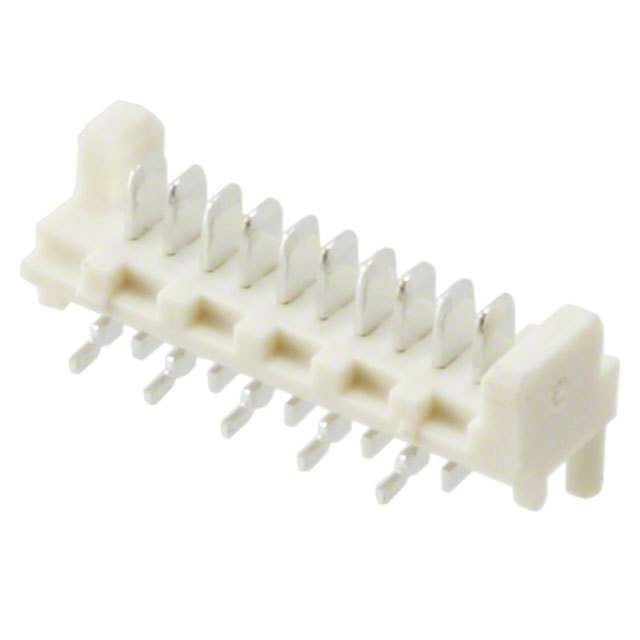

Molex 0908140610

Manufacturer No:
0908140610
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0908140610 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 10POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.050" (1.27mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 2 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.085" (2.15mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.161" (4.10mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1.2A
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
375

Please send RFQ , we will respond immediately.
