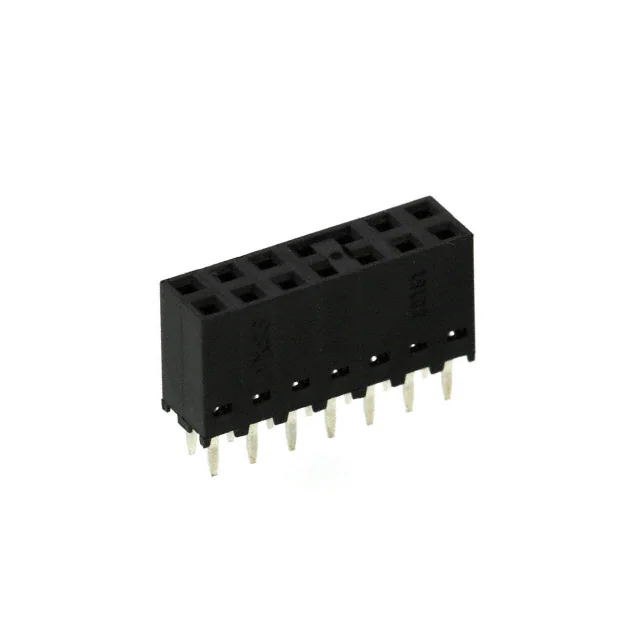

Molex 0901512214

Manufacturer No:
0901512214
Manufacturer:
Molex
Package:
Tube
Datasheet:
0901512214 Datasheet
ECAD Model:
-
Description:
CONN RCPT 14POS 0.1 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:14
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:Black
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.114" (2.90mm)
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):3A
Voltage Rating:350V
0 Remaining View Similar

In Stock

$5.75
115

Please send RFQ , we will respond immediately.
