Molex-0901512112 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	40.0µin (1.02µm)
Insulation Color:	Black
Insulation Height:	0.335" (8.51mm)
Contact Length - Post:	0.114" (2.90mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	350V

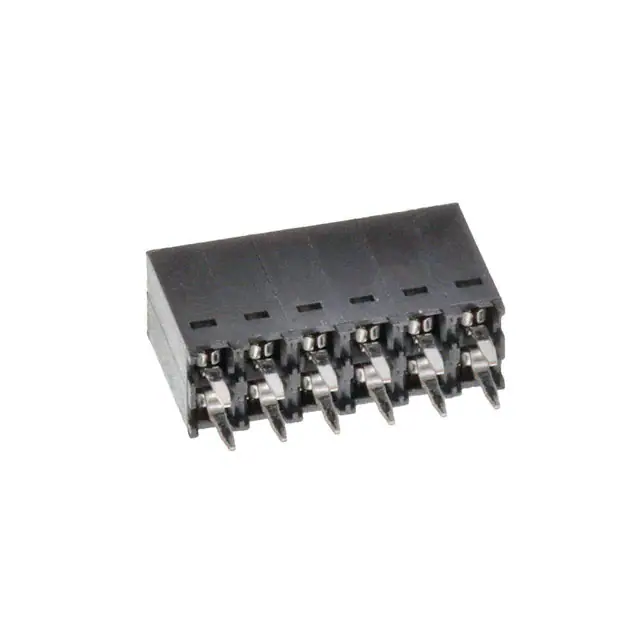

Molex 0901512112
