Molex-0901301150 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.266" (6.75mm)
Contact Length - Post:	0.114" (2.90mm)
Overall Contact Length:	0.510" (12.95mm)
Insulation Height:	0.429" (10.90mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	118.1µin (3.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

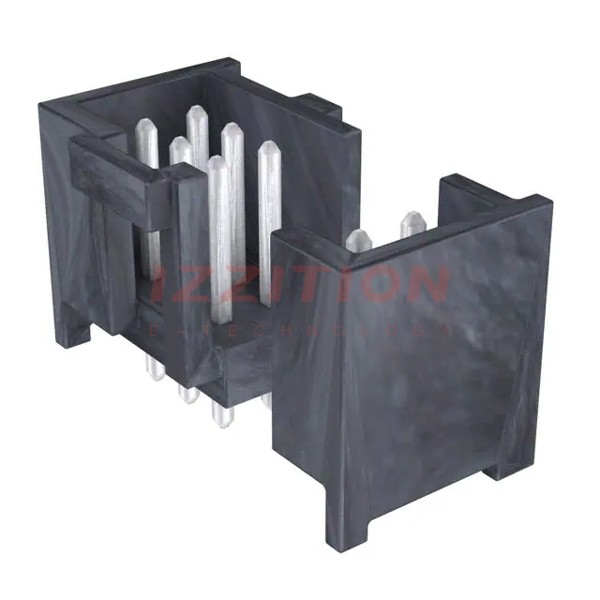

Molex 0901301150
