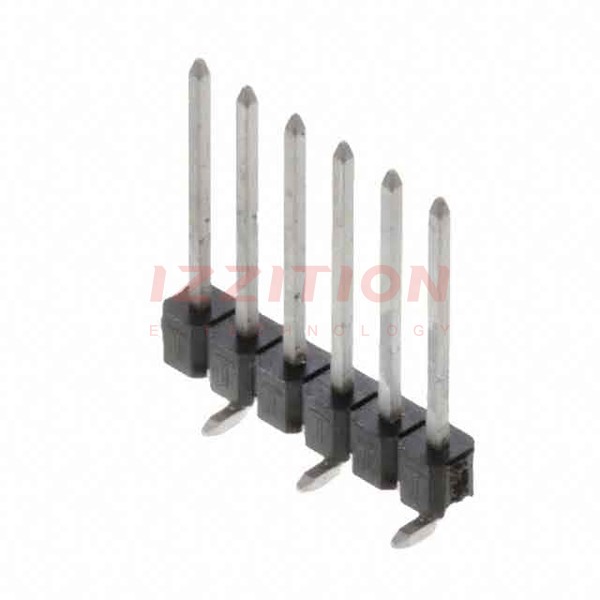

Molex-0878980657 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	6
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.453" (11.50mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Pick and Place
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0878980657
