0878980568
  • Share:

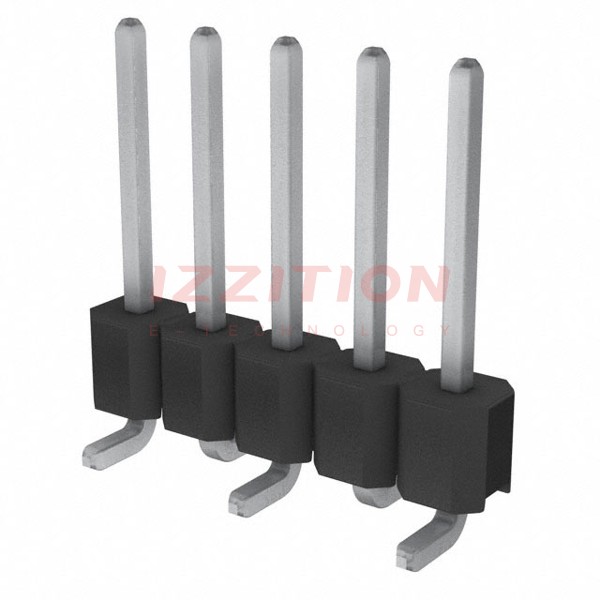

Molex 0878980568

Manufacturer No:
0878980568
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0878980568 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 5POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Pick and Place
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
141

Please send RFQ , we will respond immediately.
