0878341011
  • Share:

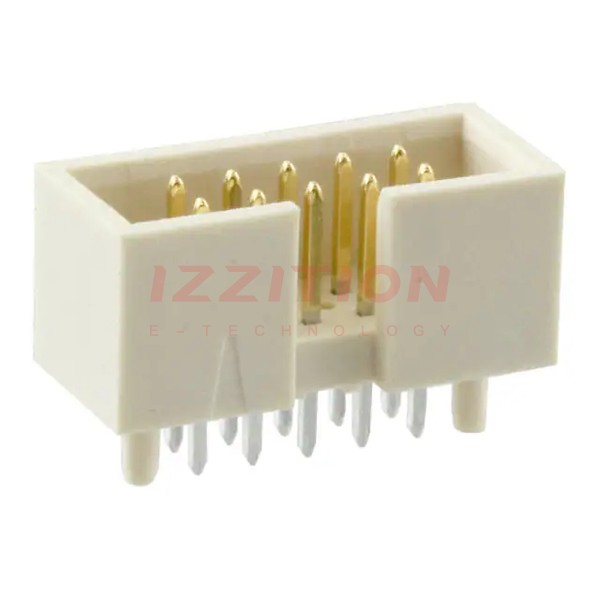

Molex 0878341011

Manufacturer No:
0878341011
Manufacturer:
Molex
Package:
Tray
Datasheet:
0878341011 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 10POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.135" (3.43mm)
Overall Contact Length:0.490" (12.45mm)
Insulation Height:0.365" (9.27mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:5.11µin (0.130µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Features:Board Guide, Keying Slot
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.56
144

Please send RFQ , we will respond immediately.
