Molex-0878321820 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	18
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.141" (3.60mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.252" (6.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Board Guide, Keying Slot
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

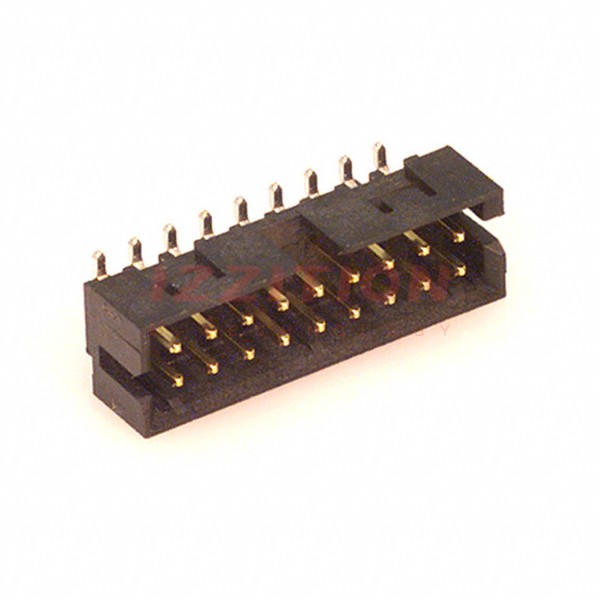

Molex 0878321820
