0878320606
  • Share:

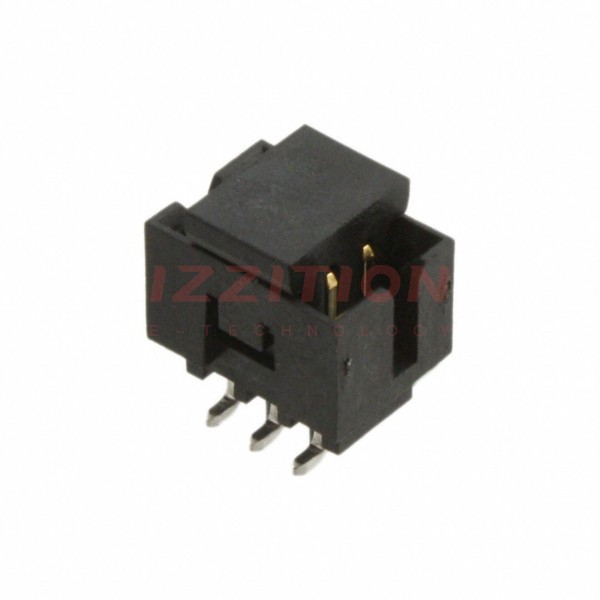

Molex 0878320606

Manufacturer No:
0878320606
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0878320606 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 6POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.141" (3.60mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.252" (6.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide, Pick and Place
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.88
451

Please send RFQ , we will respond immediately.
