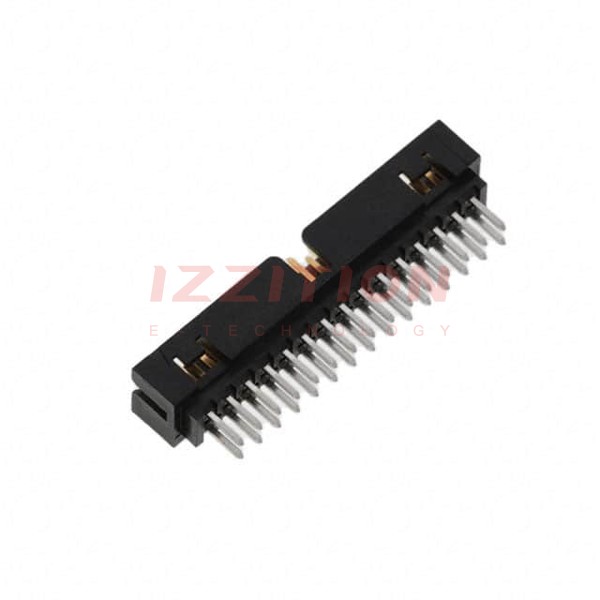

Molex-0878311635 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.141" (3.60mm)
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.252" (6.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Board Guide, Keying Slot
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	125V

Molex 0878311635
