Molex-0874381133 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	11
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.106" (2.70mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.175" (4.45mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	-
Contact Material:	Brass Alloy
Insulation Material:	Polyamide (PA46), Nylon 4/6, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	-
Voltage Rating:	250V

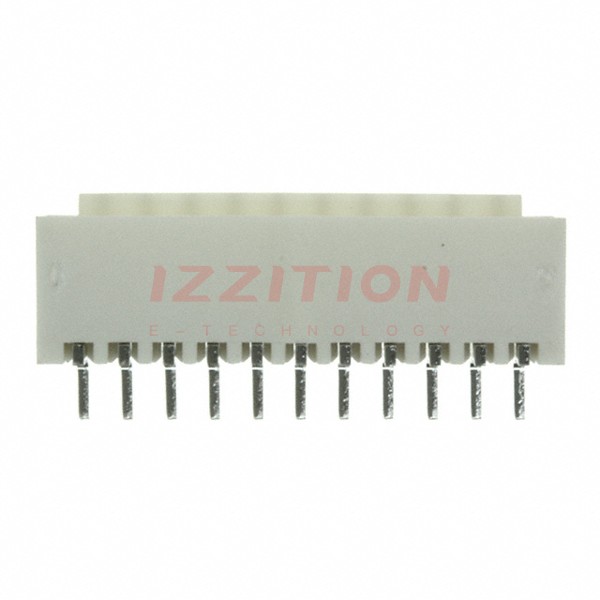

Molex 0874381133
