Molex 0872643450

Manufacturer No:
0872643450
Manufacturer:
Molex
Package:
Tube
Datasheet:
0872643450 Datasheet
ECAD Model:
-
Description:

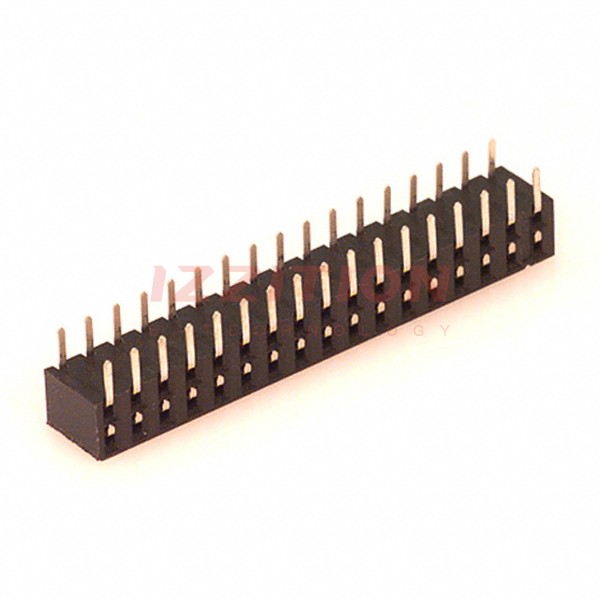

CONN RCPT 34P 0.079 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:34
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:Black
Insulation Height:0.157" (4.00mm)
Contact Length - Post:0.100" (2.54mm)
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):1A
Voltage Rating:125VAC
0 Remaining View Similar

In Stock

-
79

Please send RFQ , we will respond immediately.
