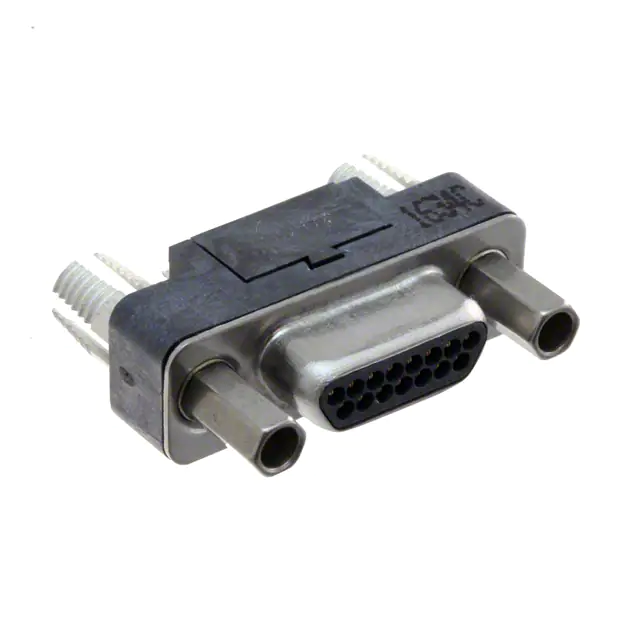

0836129024 Image
×
Favorite
Compare
Add to RFQ
Share:
Molex 0836129024
Manufacturer No:
0836129024
Manufacturer:
Molex
Package:
Tube
Datasheet:
0836129024 Datasheet
ECAD Model:
-
Description:
CONN MICRO-D PLUG 15P VERT SLDR
Delivery:
Payment:
Product Attributes
Connector Style:
D-Type, Micro-D
Connector Type:
Plug, Male Pins
Number of Positions:
15
Number of Rows:
2
Mounting Type:
Through Hole
Shell Size, Connector Layout:
0.050 Pitch x 0.043 Row to Row
Contact Type:
Signal
Flange Feature:
Mating Side, Female Screwlock (2-56)
Termination:
Solder
Primary Material:
-
Shell Material, Finish:
Steel, Nickel Plated
Contact Finish:
Gold
Contact Finish Thickness:
15.0µin (0.38µm)
Ingress Protection:
-
Material Flammability Rating:
UL94 V-0
Current Rating (Amps):
1A
Backset Spacing:
-
Features:
Board Lock, Shielded
0
Remaining
View Similar
In Stock
UnitPrice:
$17.88
Quantity:
25
