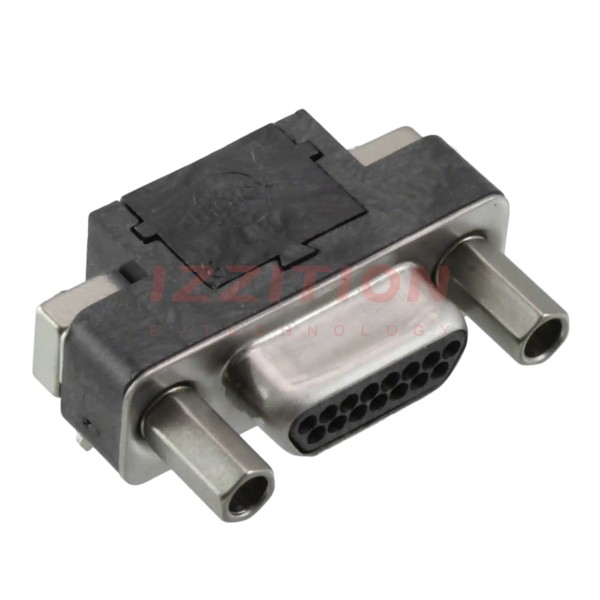

Molex 0836129020

Manufacturer No:
0836129020
Manufacturer:
Molex
Package:
Tube
Datasheet:
0836129020 Datasheet
ECAD Model:
-
Description:
CONN MICRO-D PLUG 15POS R/A SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Type, Micro-D
Connector Type:Plug, Male Pins
Number of Positions:15
Number of Rows:2
Mounting Type:Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout:0.050 Pitch x 0.050 Row to Row
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (2-56)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):1A
Backset Spacing:0.267" (6.78mm)
Features:Board Lock, Shielded
0 Remaining View Similar

In Stock

$17.99
3

Please send RFQ , we will respond immediately.
