Molex 0791077014

Manufacturer No:
0791077014
Manufacturer:
Molex
Package:
Tube
Datasheet:
0791077014 Datasheet
ECAD Model:
-
Description:

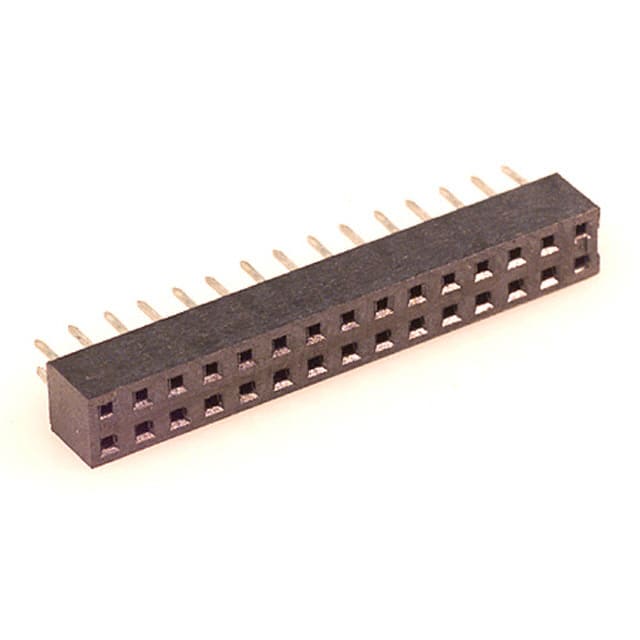

CONN RCPT 30POS 0.079 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:30
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:Black
Insulation Height:0.175" (4.45mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):1A
Voltage Rating:125V
0 Remaining View Similar

In Stock

$6.10
156

Please send RFQ , we will respond immediately.
