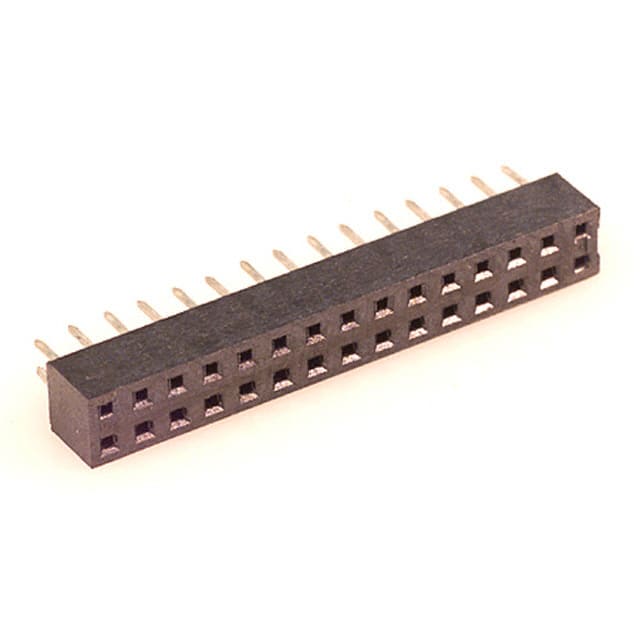

Molex-0791070014 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	30
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Insulation Color:	Black
Insulation Height:	0.175" (4.45mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin-Lead
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	1A
Voltage Rating:	125V
