Molex-0781201218 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Insulation Color:	Black
Insulation Height:	0.178" (4.51mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Pick and Place
Current Rating (Amps):	4.3A
Voltage Rating:	125VAC

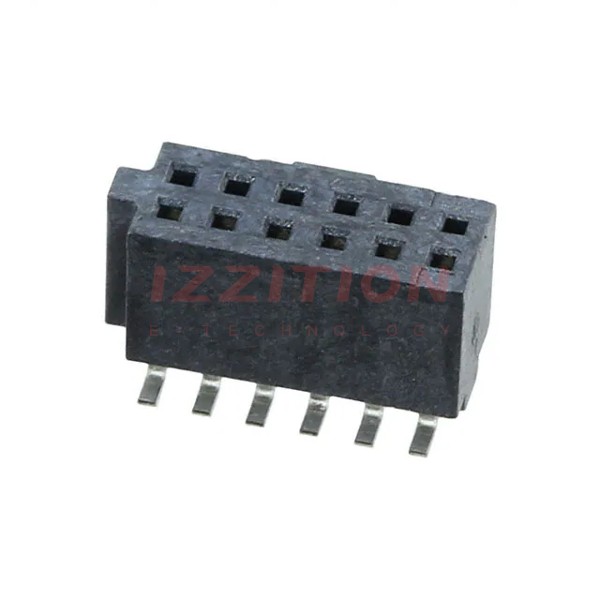

Molex 0781201218
