Molex-0780470443 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.106" (2.70mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.226" (5.74mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Brass Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	-
Voltage Rating:	-

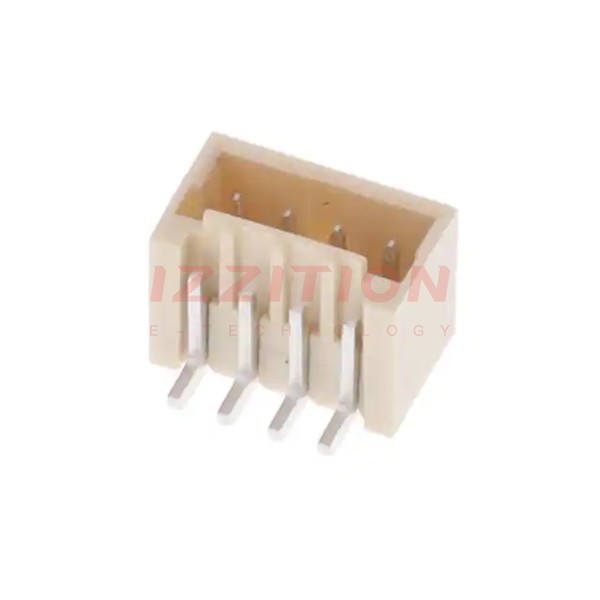

Molex 0780470443
