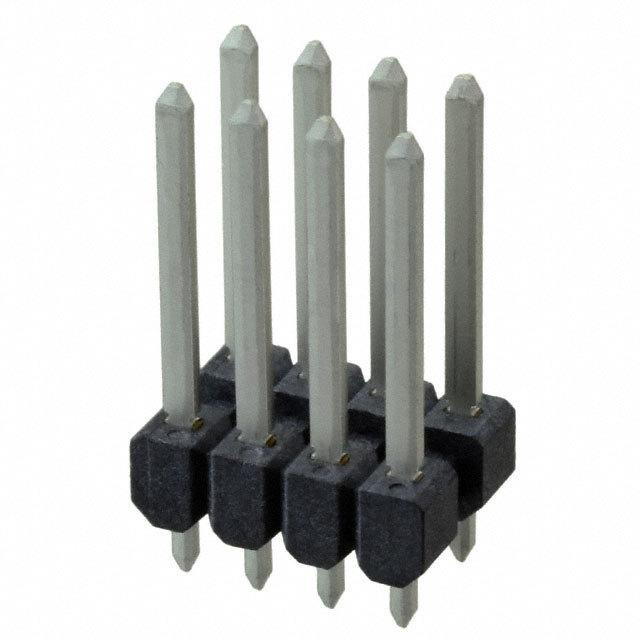

Molex-0757571441 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header, Breakaway
Contact Type:	Male Blade
Pitch - Mating:	0.138" (3.50mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.236" (6.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.441" (11.20mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.738" (18.75mm)
Insulation Height:	0.177" (4.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	59.0µin (1.50µm)
Contact Finish - Post:	Tin
Contact Material:	Cartridge Brass
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0757571441
