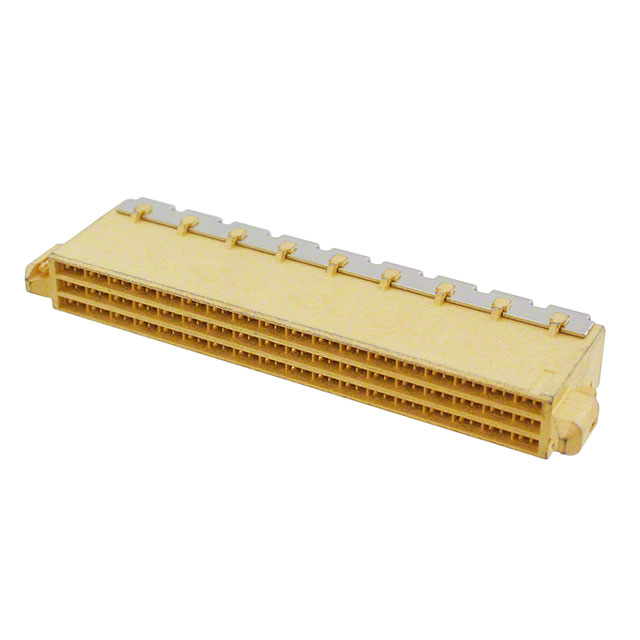

Molex-0750190013 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	108
Number of Positions Loaded:	All
Pitch - Mating:	-
Number of Rows:	3
Row Spacing - Mating:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	-
Insulation Height:	0.393" (9.98mm)
Contact Length - Post:	0.111" (2.82mm)
Operating Temperature:	-20°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0750190013
