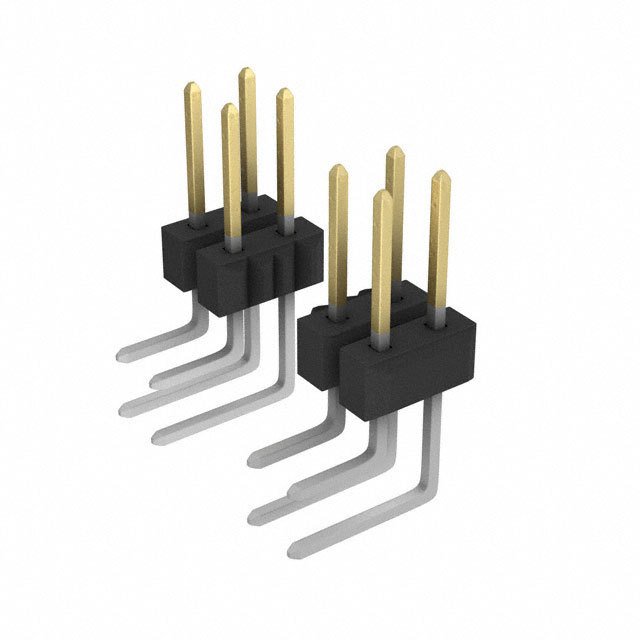

Molex-0717640144 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	44
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	-
Insulation Height:	0.200" (5.08mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
