Molex 0712262225

Manufacturer No:
0712262225
Manufacturer:
Molex
Package:
Tray
Datasheet:
0712262225 Datasheet
ECAD Model:
-
Description:

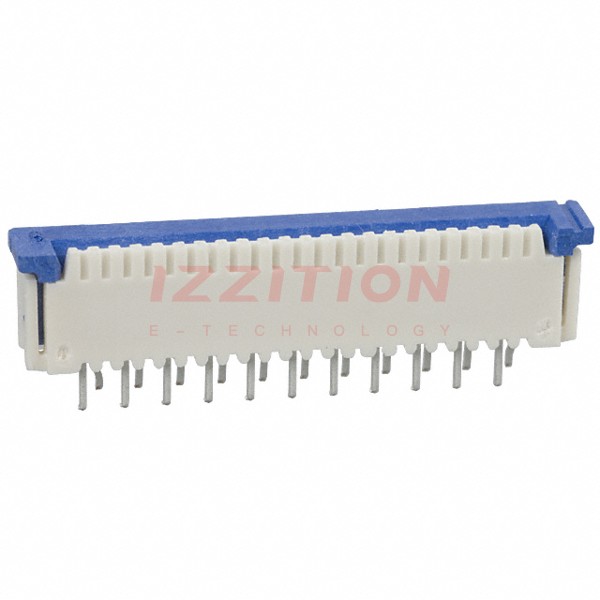

CONN FFC VERT 22POS 1.00MM PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC
Mounting Type:Through Hole
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:22
Pitch:0.039" (1.00mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.30mm
Height Above Board:0.236" (6.00mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyamide (PA), Nylon, Glass Filled
Actuator Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-20°C ~ 80°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
584

Please send RFQ , we will respond immediately.
