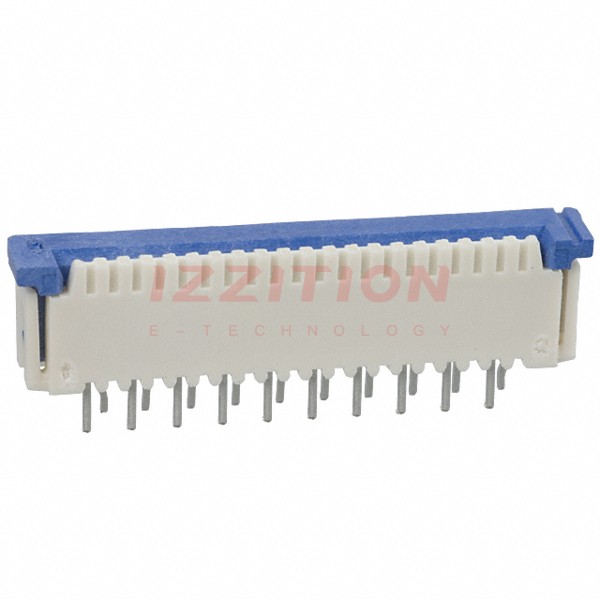

Molex-0712262025 - FFC, FPC (Flat Flexible) Connectors Product Specifications and Latest Quotes

Flat Flex Type:	FFC
Mounting Type:	Through Hole
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	20
Pitch:	0.039" (1.00mm)
Termination:	Kinked Pin
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.236" (6.00mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyamide (PA), Nylon, Glass Filled
Actuator Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Zero Insertion Force (ZIF)
Voltage Rating:	125V
Operating Temperature:	-20°C ~ 80°C
Material Flammability Rating:	UL94 V-0

Molex 0712262025
