Molex-0705419036 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.130" (3.30mm)
Overall Contact Length:	0.470" (11.94mm)
Insulation Height:	0.465" (11.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	250V

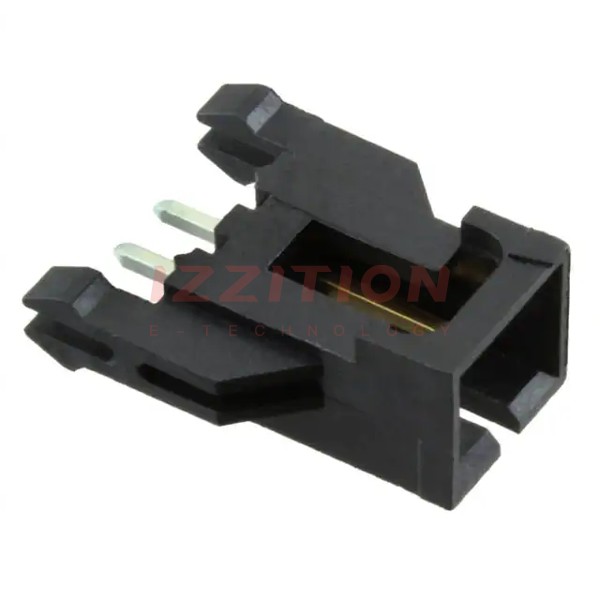

Molex 0705419036
