0705410004
  • Share:

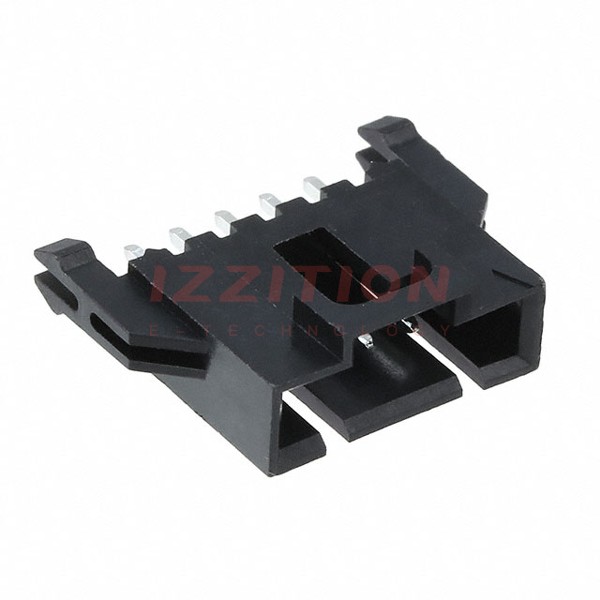

Molex 0705410004

Manufacturer No:
0705410004
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0705410004 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 5POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.470" (11.94mm)
Insulation Height:0.465" (11.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$1.76
98

Please send RFQ , we will respond immediately.
