0702871083
  • Share:

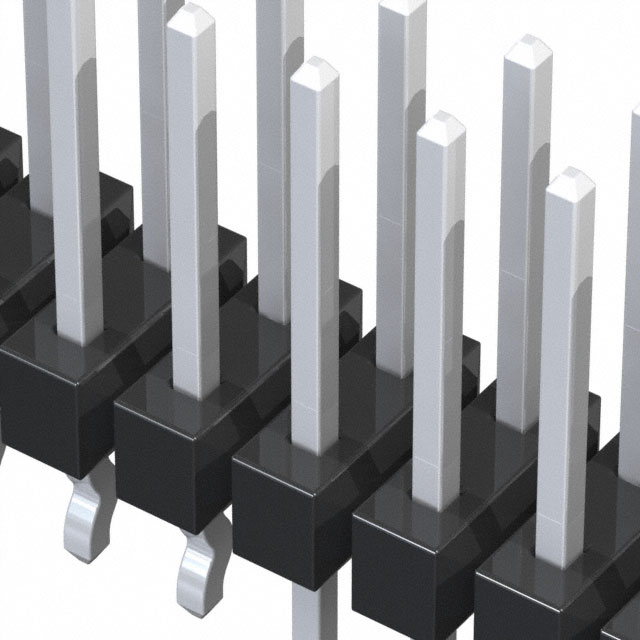

Molex 0702871083

Manufacturer No:
0702871083
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0702871083 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 72POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:72
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:0.535" (13.59mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$5.10
46

Please send RFQ , we will respond immediately.
